    Gonsuke

      Arms subassembly


    Step 01

    Piece

    Yellow

    Black

    Grab Jaw

    -

    2

    Grab Jaw Holder

    1

    -

    Arm Piece with Pin and 2 Fingers

    -

    1


    Step 02

    Piece

    Black

    Light Gray

    Technic Micromotor Pulley

    -

    1

    Technic Axle 2 Notched

    1

    -


    2 xStep 03

    Piece

    Light Gray

    Technic Angle Connector #5

    1

    Technic Pole Reverser Handle

    1


    Step 02

    Piece

    Dark Gray

    Technic Axle 3 with Stud

    2

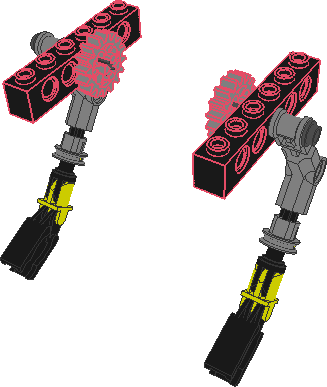

    Step 03

    Piece

    Black

    Light Gray

    Technic Brick 1 x 6 with Holes

    2

    -

    Technic Gear 16 Tooth

    -

    2


    Step 04

    Piece

    Black

    Technic Pin Long with Friction

    4



      Body subassembly

    Step 01

    Piece

    Black

    Light Gray

    Technic Gear 8 Tooth

    -

    1

    Brick 2 x 2 x 2/3 Electric Wire End

    1

    -

    Technic Mini-Motor 9v

    -

    1


    Step 02

    Piece

    Black

    Light Gray

    Plate 1 x 2

    -

    2

    Technic Brick 1 x 4 with Holes

    2

    -


    Step 03

    Piece

    Light Gray

    Plate 1 x 1

    2

    Plate 1 x 4

    3


    Step 04

    Piece

    Black

    Light Gray

    Technic Gear 24 Tooth Crown

    -

    2

    Technic Brick 1 x 4 with Holes

    2

    -

    Technic Axle 3

    2

    -


    Step 05

    Piece

    Light Gray

    Technic Gear 16 Tooth

    2


    Step 06

    Piece

    Black

    Light Gray

    Technic Axle 5

    1

    -

    Technic Gear 8 Tooth

    -

    1

    Technic Brick 1 x 4 with Holes

    1

    -


    Step 07


    Piece

    Light Gray

    Plate 1 x 1

    2

    Plate 1 x 4

    2

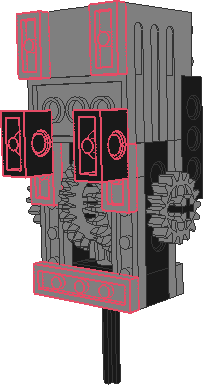

    Step 08

    Piece

    Black

    Light Gray

    Plate 1 x 2

    -

    4

    Technic Brick 1 x 2 with Hole

    2

    -

    Plate 1 x 4

    -

    1


    Step 09

    Piece

    White

    Light Gray

    Technic Plate 2 x 4 with Holes

    -

    1

    Plate 2 x 2 Round

    2

    -


    Step 10

    Piece

    Black

    Light Gray

    Technic Brick 1 x 4 with Holes

    2

    -

    Technic Axle Pin

    -

    2


    Step 11

    Piece

    Light Gray

    Technic Liftarm 1 x 5

    1

    Technic Gear 8 Tooth

    1

    Technic Bush 1/2 Smooth

    2



      Final assembly

    Step 01

    Piece

    Black

    Light Gray

    Technic Gear 24 Tooth

    -

    1

    Technic Bush

    -

    1

    Technic Axle 12

    1

    -

    Technic Brick 1 x 6 with Holes

    1

    -


    Step 02

    Piece

    Light Gray

    Technic Bush

    1

    Technic Plate 2 x 8 with Holes

    1

    Technic Cam

    1


    Step 03Step 04

    Piece

    Black

    Light Gray

    Technic Gear 24 Tooth

    -

    1

    Technic Bush

    -

    2

    Technic Axle 12

    1

    -

    Technic Plate 2 x 8 with Holes

    -

    1

    Technic Cam

    -

    1



    Step 05

    Subassembly



    Body

     1


    Step 06

    Piece

    Light Gray

    Technic Bush 1/2 Smooth

    1


    Step 07

    Subassembly



    Arms

     1


    Designed with LeoCAD
