    Remote990: Coolpix 990 remote control - and more

Step 01

Piece

Black

Technic Axle 6

2

Technic Axle 2 Notched

2


Step 02

Piece

Blue

Light Gray

Technic Pin Long with Stop Bush

4

-

Technic Bush

-

4


Step 03

Piece

Yellow

Black

Technic Liftarm 1 x 11.5 Double Bent

1

-

Technic Liftarm 2 x 4 L Shape

-

2

Technic Brick 1 x 16 with Holes

-

1


Step 04

Piece

Black

Light Gray

Technic Axle 6

1

-

Technic Bush 1/2 Smooth

-

1

Technic Pin with Friction

1

-

Technic Liftarm 1 x 3

-

1


Step 05

Piece

Black

Technic Brick 1 x 6 with Holes

1

Technic Pin with Friction

1


Step 06

Piece

Black

Light Gray

Technic Brick 1 x 6 with Holes

1

-

Technic Axle Pin

-

4

Technic Pin with Friction

1

-


Step 07Step 08

Piece

Yellow

Light Gray

Technic Liftarm 1 x 11.5 Double Bent

1

-

Technic Liftarm 3 x 3 L Shape

-

2

Technic Bush 1/2 Smooth

-

1

Technic Liftarm 1 x 3

-

1


Step 09

Piece

Black

Light Gray

Technic Brick 1 x 16 with Holes

1

-

Technic Axle 8

1

-

Technic Gear 16 Tooth

-

1

Technic Bush 1/2 Smooth

-

2

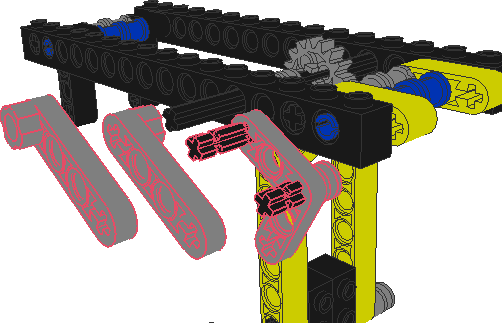

Step 10

Piece

Black

Light Gray

Technic Liftarm 1 x 4

-

2

Technic Liftarm 3 x 3 L Shape

-

1

Technic Bush 1/2 Smooth

-

1

Technic Axle 2 Notched

2

-


Step 11
Step 12

Piece

Light Gray

Technic Axle Pin

1

Technic Bush 1/2 Smooth

3



Step 13

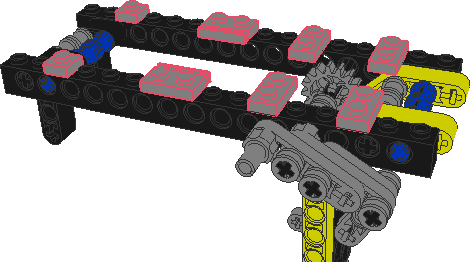

Step 14

Piece

Light Gray

Plate 1 x 2

4

Plate 1 x 1

2

Plate 1 x 2 with Door Rail

2


Step 15

Piece

Black

Light Gray

Brick 2 x 2 x 2/3 Electric Wire End

1

-

Technic Axle Joiner

-

1

Technic Mini-Motor 9v

-

1


Step 16

Piece

Black

Light Gray

Plate 1 x 6

-

1

Technic Axle 8

1

-

Technic Brick 1 x 6 with Holes

2

-

Technic Gear 16 Tooth

-

1

Technic Worm Screw

1

-

Electric Touch Sensor Brick 3 x 2 (Complete Assembly Shortcut)

-

1


Step 17

Piece

Black

Light Gray

Plate 1 x 2

-

4

Plate 1 x 6

-

2

Brick 2 x 2 x 2/3 Electric Wire End

1

-


Step 18

Piece

Black

Light Gray

Plate 1 x 8

-

2

Technic Brick 1 x 2 with Hole

2

-


Step 19

Piece

Light Gray

Plate 2 x 2

2

Plate 1 x 6

2


Step 20

Piece

Dark Gray

Black

Technic Pin 3/4

2

-

Technic Brick 1 x 8 with Holes

-

2


Step 21

Piece

Light Gray

Technic Liftarm 1 x 5

1


Step 22

Piece

Dark Gray

Technic Pin 3/4

4


Step 23

Piece

Black

Light Gray

Technic Liftarm 1 x 5

-

1

Technic Liftarm 1 x 7

1

-




Designed with LeoCAD
