    VR turntable

    Base assembly

    Step 01

Piece

Yellow

Light Gray

Plate 2 x 4

3

-

Plate 1 x 8

-

2

Technic Plate 2 x 4 with Holes

-

1


Step 02

Piece

Black

Technic Brick 1 x 8 with Holes

2

Technic Brick 1 x 16 with Holes

2

Technic Brick 1 x 2 with Hole

2


Step 03

Piece

Black

Light Gray

Brick 2 x 2

2

-

Brick 1 x 2

1

-

Technic Brick 1 x 2 with Hole

1

-

Plate 1 x 4

-

1


Step 04

Piece

Yellow

Light Gray

Plate 2 x 4

2

-

Plate 1 x 2

-

1

Plate 1 x 2 with Door Rail

-

1

Technic Plate 2 x 4 with Holes

-

1

Plate 1 x 4

-

1

Plate 1 x 10

-

2


Step 05

Piece

Black

Light Gray

Brick 2 x 4

2

-

Plate 1 x 2

-

2

Plate 1 x 4

-

1

Brick 2 x 2 x 2/3 Electric Wire End

1

-

Technic Axle Joiner

-

1

Technic Mini-Motor 9v

-

1


Step 06

Piece

Black

Light Gray

Technic Brick 1 x 2 with Hole

1

-

Technic Axle 6

1

-

Technic Bush 1/2 Smooth

-

2

Technic Worm Screw

1

-


Step 07
Step 08

Piece

Black

Light Gray

Technic Gear 40 Tooth

-

1

Technic Bush

-

1

Technic Axle 8

1

-

Technic Bush 1/2 Smooth

-

2



Step 09

Piece

Black

Light Gray

Plate 1 x 2

-

1

Technic Brick 1 x 4 with Holes

1

-

Plate 1 x 4

-

1

Brick 2 x 2 Round

2

-

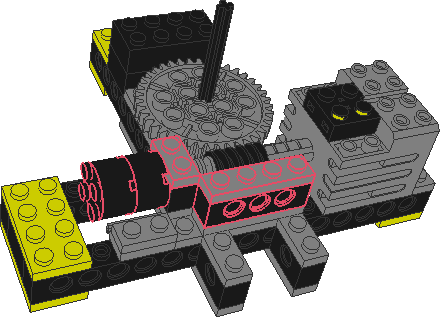

Step 10

Piece

Blue

Light Gray

Electric Light Sensor (Complete Assembly Shortcut)

1

-

Plate 1 x 2

-

2

Plate 1 x 2 with Door Rail

-

1

Plate 1 x 4

-

1

Plate 1 x 10

-

2


Step 11

Piece

Black

Technic Brick 1 x 10 with Holes

2

Brick 2 x 4

1

Technic Brick 1 x 2 with Hole

1

Technic Brick 1 x 4 with Holes

2


Step 12

Piece

Black

Technic Pin with Friction

2


Step 13

Piece

Black

Technic Brick 1 x 6 with Holes

1

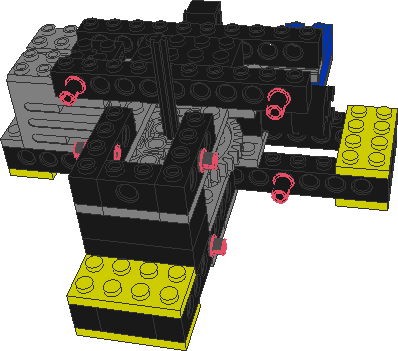

Step 14

Piece

Dark Gray

Black

Technic Pin 3/4

4

-

Technic Pin with Friction

-

4


Step 15

Piece

Black

Light Gray

Technic Liftarm 1 x 5

-

2

Technic Brick 1 x 6 with Holes

2

-


Step 16

Piece

Light Gray

Plate 2 x 2

1

Technic Plate 2 x 8 with Holes

1

Plate 2 x 10

2


    Wheel assembly


Step 01

Piece

White

Black

Technic Pin Long with Friction

-

6

Wheel 81.6 x 15 Motorcycle

1

-


Step 02

Piece

Black

Light Gray

Technic Liftarm 1 x 7

2

-

Technic Axle Joiner Perpendicular

-

4


Step 03

Piece

Black

Technic Pin with Friction

2


Step 04

Piece

Black

Technic Brick 1 x 10 with Holes

6


Step 05

Piece

Dark Gray

Technic Pin 3/4

6


    Final assembly


Step 01


Step 02


Designed with LeoCAD
