    Laser Sensor Test Vehicle: Subassemblies

    Wheels

Step 01

Piece

Black

Light Gray

Plate 2 x 2 Corner

-

8

Technic Brick 1 x 10 with Holes

4

-

Technic Bush

-

2

Plate 1 x 6

-

4

Technic Axle 6

4

-

Technic Axle Pin

-

4


Step 02

Piece

Yellow

White

Black

Light Gray

Wheel Centre Large

2

-

-

-

Tyre 17 x 43

-

-

2

-

Technic Gear 24 Tooth

-

-

-

4

Technic Gear 40 Tooth

-

-

-

4

Technic Bush

-

-

-

2

Technic Bush 1/2 Smooth

-

-

-

3

Tyre 49.6 x 28 VR

-

-

2

-

Wheel 49.6 x 28 VR

-

2

-

-





    Bumper

Step 01


Piece

Black

Light Gray

Technic Brick 1 x 10 with Holes

2

-

Technic Bush

-

1

Technic Pin

-

2

Technic Axle 4

1

-

Technic Bush 1/2 Smooth

-

2

Technic Pin with Friction and Slots

1

-


Step 02


Piece

Yellow

Black

Light Gray

Plate 2 x 4

2

-

-

Technic Axle 5

-

1

-

Technic Axle 8

-

1

-

Technic Bush 1/2 Smooth

-

-

2

Technic Axle Joiner

-

-

1

Technic Liftarm 1 x 9 Bent

-

1

-


Step 03


Piece

Black

Light Gray

Technic Axle 8

1

-

Technic Bush 1/2 Smooth

-

1

Brick 2 x 2 x 2/3 Electric Wire End

1

-

Technic Liftarm 1 x 9 Bent

1

-

Electric Touch Sensor Brick 3 x 2 (Complete Assembly Shortcut)

-

1

Rubber Belt

1

-



    Leveler

Step 01

Piece

Black

Light Gray

Technic Axle 8

2

-

Technic Axle 12

1

-

Technic Bush 1/2 Smooth

-

4

Technic Worm Screw

1

-


Step 02

Piece

Light Gray

Technic Bush 1/2 Smooth

1

Technic Liftarm 1 x 3

2


Step 03

Piece

Light Gray

Technic Micromotor Pulley

1

Technic Plate 2 x 6 with Holes

1

Technic Bush

4

Technic Bush 1/2 Smooth

1

Technic Axle Joiner Perpendicular

2

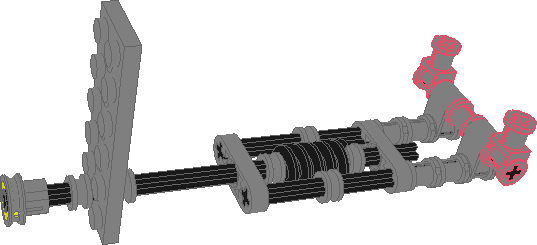

Step 04

Piece

Black

Light Gray

Technic Connector with Axlehole

-

2

Technic Axle 5

1

-

Technic Bush

-

1


Designed with LeoCAD
