     Brick sorter 3: Brick chute

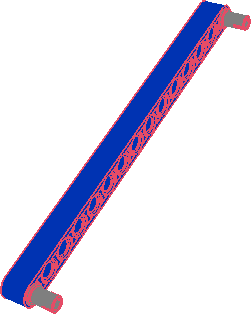

Step 01


Piece

Blue

Light Gray

Technic Pin

-

2

Technic Liftarm 1 x 15 Straight

1

-

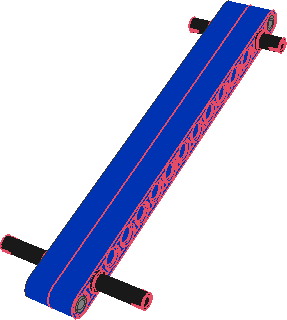

Step 02


Piece

Blue

Black

Technic Pin with Friction

-

2

Technic Pin Long with Friction

-

2

Technic Liftarm 1 x 15 Straight

1

-

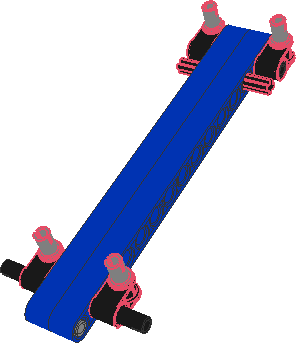

Step 03


Piece

Black

Light Gray

Technic Axle 4

1

-

Technic Axle Pin

-

4

Technic Axle Joiner Perpendicular

4

-

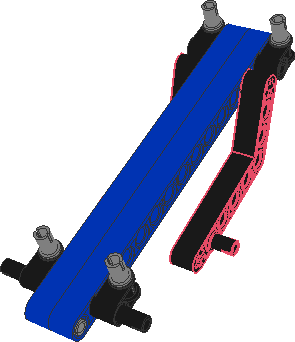

Step 04


Piece

Black

Technic Pin with Friction

2

Technic Liftarm 1 x 9 Bent

2

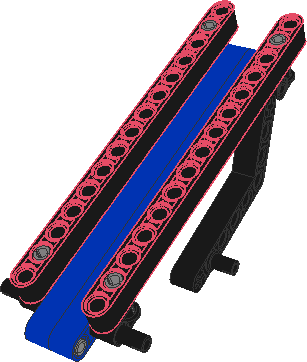

Step 05


Piece

Black

Technic Liftarm 1 x 15 Straight

2

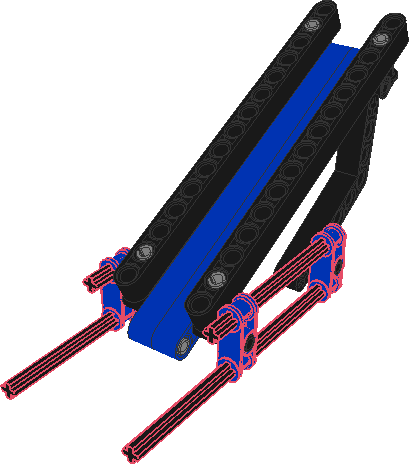

Step 06


Piece

Blue

Black

Technic Axle 8

-

2

Technic Axle 12

-

2

Technic Axle Joiner Perpendicular 3L

4

-


Step 07


Piece

Green

Black

Light Gray

Technic Liftarm 2 x 4 L Shape

-

1

-

Technic Brick 1 x 2 with Axlehole

1

-

-

Technic Bush

-

-

1

Plate 1 x 1 Round

-

-

4


Designed with LeoCAD
